Oracle Enterprise Manager Configuration

1.      create the repository

$ emca -config dbcontrol db -repos create


Dec 2, 2005 7:35:01 PM oracle.sysman.emcp.EMReposConfig createRepository
                INFO: Creating the EM repository (this may take a while) ...
                Dec 2, 2005 7:35:01 PM oracle.sysman.emcp.EMReposConfig createRepository
                CONFIG: ORA-20001: SYSMAN already exists..
                ORA-06512: at line 17

oracle.sysman.assistants.util.sqlEngine.SQLFatalErrorException: ORA-20001: SYSMAN already exists..
                ORA-06512: at line 17

                                at oracle.sysman.assistants.util.sqlEngine.SQLEngine.executeImpl(SQLEngine.java:1474)
                                at oracle.sysman.assistants.util.sqlEngine.SQLEngine.executeScript(SQLEngine.java:848)
                at oracle.sysman.assistants.util.sqlEngine.SQLPlusEngine.executeScript(SQLPlusEngine.java:267)
at oracle.sysman.assistants.util.sqlEngine.SQLPlusEngine.executeScript(SQLPlusEngine.java:308)
                                at oracle.sysman.emcp.EMReposConfig.createRepository(EMReposConfig.java:422)
                                at oracle.sysman.emcp.EMReposConfig.invoke(EMReposConfig.java:192)
                                at oracle.sysman.emcp.EMReposConfig.invoke(EMReposConfig.java:134)
                                at oracle.sysman.emcp.EMConfig.perform(EMConfig.java:171)
                                at oracle.sysman.emcp.EMConfigAssistant.invokeEMCA(EMConfigAssistant.java:486)
                at oracle.sysman.emcp.EMConfigAssistant.performConfiguration(EMConfigAssistant.java:1142)
                                at oracle.sysman.emcp.EMConfigAssistant.statusMain(EMConfigAssistant.java:470)
                                at oracle.sysman.emcp.EMConfigAssistant.main(EMConfigAssistant.java:419)
                Dec 2, 2005 7:35:01 PM oracle.sysman.emcp.EMReposConfig invoke
                SEVERE: Error creating the repository
                Dec 2, 2005 7:35:01 PM oracle.sysman.emcp.EMReposConfig invoke
INFO: Refer to the log file at /opt/app/oracle/oracle/product/10.2.0/db_1/cfgtoollogs/emca/DBACLASS/emca_repos_create_<date>.log for more details.
                Dec 2, 2005 7:35:01 PM oracle.sysman.emcp.EMConfig perform
                SEVERE: Error creating the repository
Refer to the log file at /opt/app/oracle/oracle/product/10.2.0/db_1/cfgtoollogs/emca/DBACLASS/emca_2005-12-02_07-34-42-PM.log for more details.
                Dec 2, 2005 7:35:01 PM oracle.sysman.emcp.EMConfig perform
                CONFIG: Stack Trace:
                oracle.sysman.emcp.exception.EMConfigException: Error creating the repository
                                at oracle.sysman.emcp.EMReposConfig.invoke(EMReposConfig.java:204)
                                at oracle.sysman.emcp.EMReposConfig.invoke(EMReposConfig.java:134)
                                at oracle.sysman.emcp.EMConfig.perform(EMConfig.java:171)
                                at oracle.sysman.emcp.EMConfigAssistant.invokeEMCA(EMConfigAssistant.java:486)
                                at oracle.sysman.emcp.EMConfigAssistant.performConfiguration(EMConfigAssistant.java:1142)
                                at oracle.sysman.emcp.EMConfigAssistant.statusMain(EMConfigAssistant.java:470)



2.       As the database is created manually, the SYSMAN user and some other users like MGMT_USER and synonyms already exists in the database. So, they should be dropped   before the repository is created. If the user is not dropped the previous error will occur.

 Drop the SYSMAN user along with the other user and roles as follows:

                   SQL> drop user sysman cascade;
                   User dropped.

                   SQL> DROP USER mgmt_view;
                   User dropped.

                   SQL> DROP PUBLIC SYNONYM mgmt_target_blackouts;
                   Synonym dropped.

                   SQL> DROP ROLE mgmt_user;
                   Role dropped.

                   SQL> DROP PUBLIC SYNONYM setemviewusercontext;
                   Synonym dropped.



3.       Now create the repository and configure the database control at a time with the below command.
                It prompts for the passwords. The passwords should be given in the double quotes.

$ emca -config dbcontrol db -repos create

STARTED EMCA at Dec 2, 2005 9:21:32 PM
                EM Configuration Assistant, Version 10.2.0.1.0 Production
                Copyright (c) 2003, 2005, Oracle.  All rights reserved.

                Enter the following information:
                Database SID: DBACLASS
                Database Control is already configured for the database DBACLASS
                You have chosen to configure Database Control for managing the database DBACLASS
                This will remove the existing configuration and the default settings and perform a fresh configuration
                Do you wish to continue? [yes(Y)/no(N)]: y
                Listener port number: 1521
                Password for SYS user:
                Password for DBSNMP user:
                Password for SYSMAN user:
                Email address for notifications (optional): venkat.tadi@abacus-concepts.com
                Outgoing Mail (SMTP) server for notifications (optional):
                -----------------------------------------------------------------

                You have specified the following settings

                Database ORACLE_HOME ................ /opt/app/oracle/oracle/product/10.2.0/db_1

                Database hostname ................ dg2.abacus.com
                Listener port number ................ 1521
                Database SID ................ DBACLASS
                Email address for notifications ............... venkat.tadi@abacus-concepts.com
                Outgoing Mail (SMTP) server for notifications ...............

                -----------------------------------------------------------------
                Do you wish to continue? [yes(Y)/no(N)]: y
                Dec 2, 2005 9:22:26 PM oracle.sysman.emcp.EMConfig perform
                INFO: This operation is being logged at /opt/app/oracle/oracle/product/10.2.0/db_1/cfgtoollogs/emca/DBACLASS/emca_2005-12-02_09-21-32-PM.log.
                Dec 2, 2005 9:22:27 PM oracle.sysman.emcp.util.DBControlUtil stopOMS
                INFO: Stopping Database Control (this may take a while) ...
                Dec 2, 2005 9:22:30 PM oracle.sysman.emcp.EMReposConfig createRepository
                INFO: Creating the EM repository (this may take a while) ...
                Dec 2, 2005 9:24:14 PM oracle.sysman.emcp.EMReposConfig invoke
                INFO: Repository successfully created
                Dec 2, 2005 9:24:18 PM oracle.sysman.emcp.util.DBControlUtil secureDBConsole
                INFO: Securing Database Control (this may take a while) ...
                Dec 2, 2005 9:26:50 PM oracle.sysman.emcp.util.DBControlUtil secureDBConsole
                INFO: Database Control secured successfully.
                Dec 2, 2005 9:26:50 PM oracle.sysman.emcp.util.DBControlUtil startOMS
                INFO: Starting Database Control (this may take a while) ...
                Dec 2, 2005 9:28:28 PM oracle.sysman.emcp.EMDBPostConfig performConfiguration
                INFO: Database Control started successfully
                Dec 2, 2005 9:28:28 PM oracle.sysman.emcp.EMDBPostConfig performConfiguration
                INFO: >>>>>>>>>>> The Database Control URL is https://dg2.abacus.com:1158/em  <<<<<<<<<<<
                Enterprise Manager configuration completed successfully
                FINISHED EMCA at Dec 2, 2005 9:28:28 PM



             4.       Now the OEM is successfully installed and configured. To check status of the dbconsole:

                 $ emctl status dbconsole

                TZ set to Asia/Calcutta
                Oracle Enterprise Manager 10g Database Control Release 10.2.0.4.0
                Copyright (c) 1996, 2007 Oracle Corporation.  All rights reserved.
                https://dg2.abacus.com:1158/em/console/aboutApplication
                Oracle Enterprise Manager 10g is running.
                ------------------------------------------------------------------
                Logs are generated in directory /opt/app/oracle/oracle/product/10.2.0/db_1/dg2.abacus.com_DBACLASS/sysman/log


                It shows that the OEM is running. We can check it from the client machine.



5.       Open the browser in the client system. and https://hostname:port/em/ in our case it is https://dg2.abacus.com:1158/em


  Screen1—log in page



    Screen2—license agreement.

   Click on the I agree button

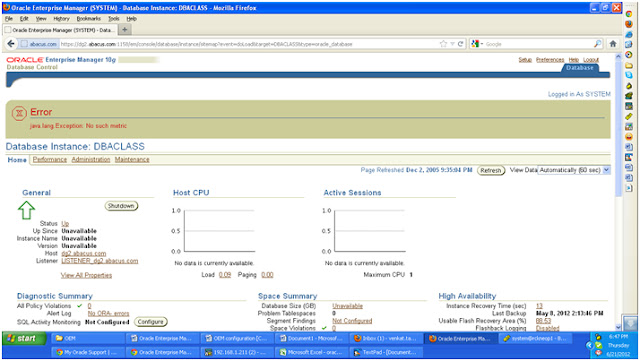

  Screen3—
